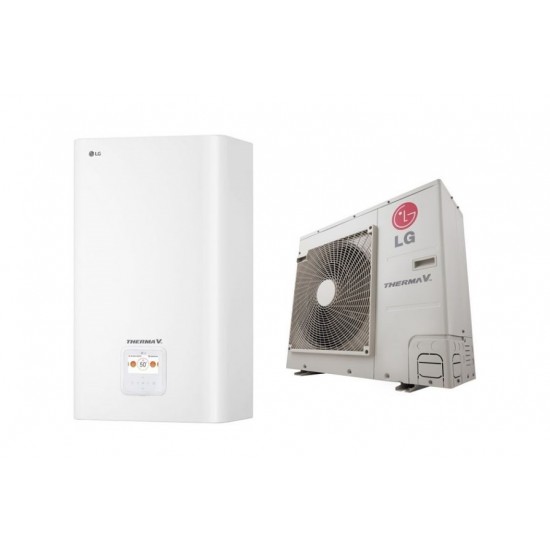

Термопомпа единичен-сплит LG

• Подобрен топлообменник
• ''Gold Fin'' покритие на топлообменника
• Възможност за задаване на седмичен таймер
• Автоматичен режим на работа
• Защита против замръзване
• Отлична работа при -2°С
• Ниски нива на шум
• Режим ''дезинфекция''
• Лесен монтаж и обслужване
• Възможност за работа дори в авариен режим

Възможност за добавяне на допълнителни аксесоари :

1. Wi-Fi модем PWFMDD200 - дава възможност за управление на машината чрез мобилно устройство.
2. Комплект за монтаж към бойлер PHLTА - дава възможност за управление на бойлер за битова гореща вода.

Сензор PHRSTA0 - дава възможност за управление на бойлер за битова гореща вода, без да има комплект за монтаж към него

Outdoor Units ZHUW056A0 [HU051MR U44] ZHUW076A0 [HU071MR U44] ZHUW096A0 [HU091MR U44]

Operation Range (Outdoor Temperature) Cooling Min. ~ Max. °C DB 5 ~ 48 5 ~ 48 5 ~ 48

Heating Min. ~ Max. °C DB -25 ~ 35 -25 ~ 35 -25 ~ 35

Compressor Type - Hermetic Sealed Scroll

Model Model × No. RJB036MAA × 1

Motor Type - BLDC BLDC BLDC

Displacement cm3/Rev. 31,6 31,6 31,6

Refrigerant Type - R32 R32 R32

GWP (Global Warming Potential) - 675 675 675

Precharged Amount g 1 500 1 500 1 500

t-CO2 eq. - 1,013 1,013 1,013

Control - Electronic Expansion Valve

Refrigerant Oil Type - FW68D FW68D FW68D

Charged Volume cc × No. 1 100 1 100 1 100

Piping Connections Gas Type Flare Flare Flare

mm(Inch) Ф 15.88 (5/8) Ф 15.88 (5/8) Ф 15.88 (5/8)

Liquid Type Flare Flare Flare

mm(Inch) Ф 9.52 (3/8) Ф 9.52 (3/8) Ф 9.52 (3/8)

Piping Length Standard m 5 5 5

Max. m 50 50 50

Piping Level Difference Max. m 30 30 30

Chargeless-Pipe Length m 10 10 10

Additional Charging Volume g/m 30 30 30

Heat Exchanger Quantity EA 1 1 1

Specification Row EA 2 2 2

Column EA 38 38 38

FPI EA 14 14 14

Fan Type - Propeller Propeller Propeller

Air Flow Rate Rated m3/min × No. 60.0 × 1 60.0 × 1 60.0 × 1

Fan Motor Type - BLDC BLDC BLDC

Output W × No. 124 × 1 124 × 1 124 × 1

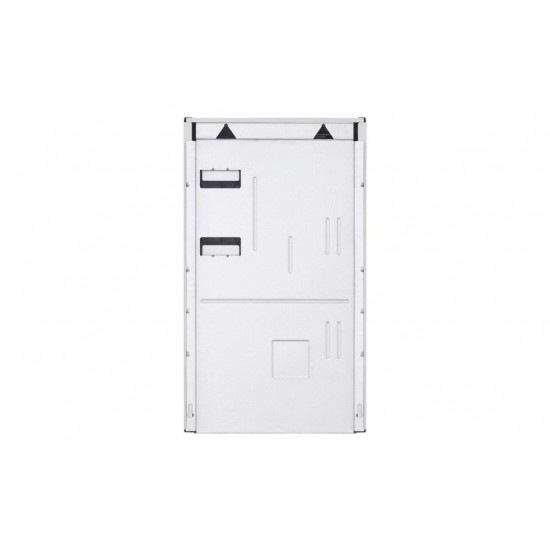

Indoor Unit ZHNW09606A0 [HN0916M NK4]

Operation Range (Leaving Water Temperature) Cooling Min. ~ Max. °C DB 5 ~ 27

Heating Min. ~ Max. °C DB 15 ~ 65

DHW * Min. ~ Max. °C DB 15 ~ 80

Water Pump Type - Canned type for hot water circulation

Model GRUNDFOS UPM3K 20-75 CHBL

Motor Type - BLDC

Steps of Pump Performance - Variable capacity 10% to 100%

Power input Min. ~ Max. W 3 ~ 60

Heat Exchanger Type - Brazed Plate HEX

Quantity 1

Number of Plate EA 54

Water Volume ˜ 0,7

Flow Sensor Type - Vortex

Model - SIKA VVX20

Measuring Range Min. ~ Max. ˜/min 5 ~ 80

Flow (Trigger point) Min. ˜/min 7

Expansion Vessel Volume Max. ˜ 8

Water pressure Max. bar 3

Water pressure Pre-charged bar 1

Strainer Mesh size - 28 mesh

Material - Stainless Steel

Relief valve Pressure Limit Upper Limit bar 3,0

Piping Connections Water Circuit Inlet mm(Inch) Male PT 25(1)

Outlet mm(Inch) Male PT 25(1)

Refrigerant Circuit Gas mm(Inch) Ф 15.88 (5/8)

Liquid mm(Inch) Ф 9.52 (3/8)

Wiring Connections Communication Cable (included Earth) No × mm2 4 × 0.75 (H07RN-F)

Sound Power Level Heating Rated dB(A) 44

Dimensions Unit W × H × D mm 490 × 850 × 315

Packed Unit W × H × D mm 563 ×1082 × 375

Weight Unit kg 41,0

Packed Unit kg 47,0

Electrical Specification ZHNW09606A0 [HN0916M NK4]

Backup Heater Type - Sheath

Number of Heating Coil EA 2

Capacity Combination kW 3.0 + 3.0

Operation - Automatic

Heating Steps Step 2

Power Supply V, Ø, Hz 220-240, 1, 50

Rated Current A 25,0
